Reference:
BG05.250L

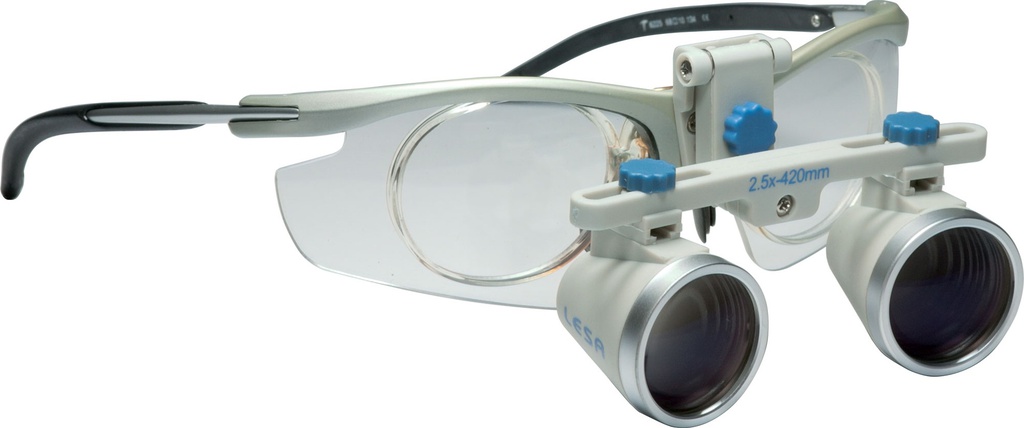

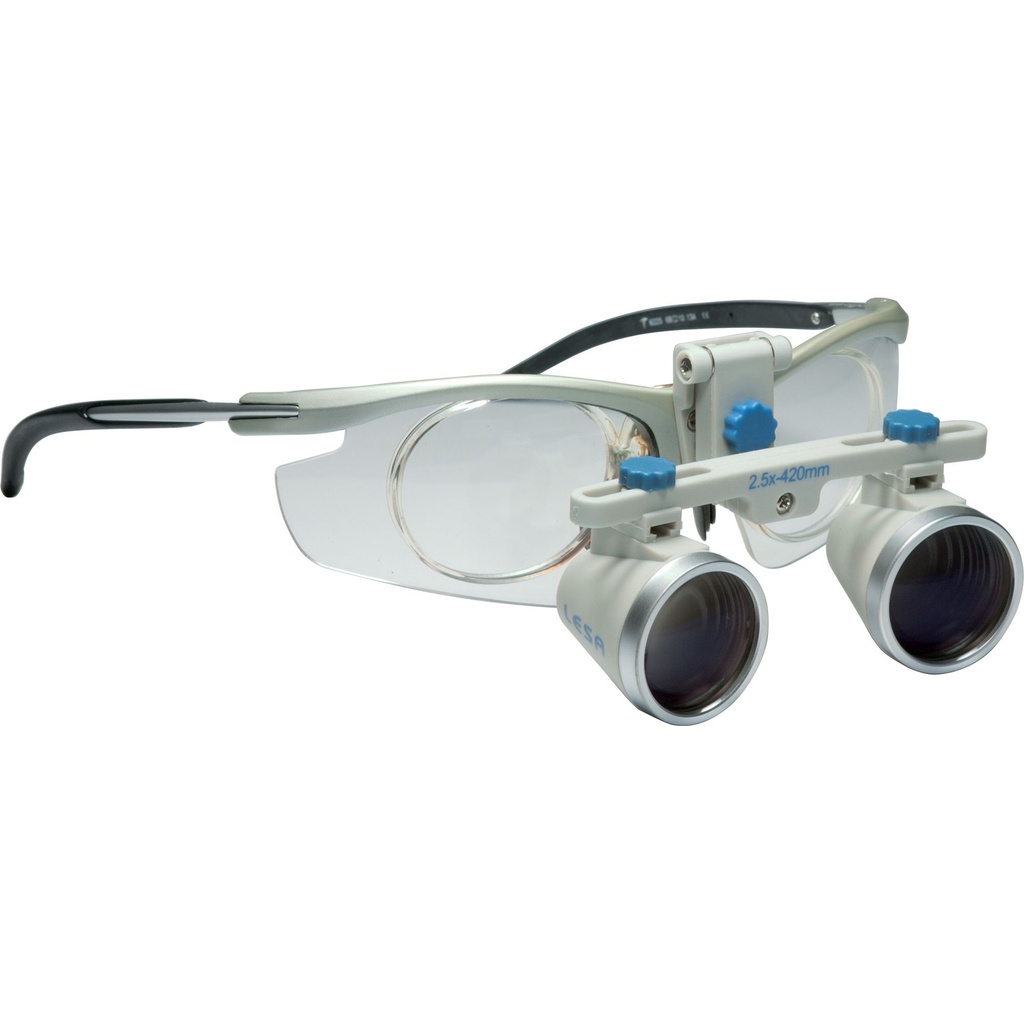

Galilean loupes for professionals.
- Galilean system on a protective frame.
- The wearer's prescription is fitted in an additional insert that clips in at the back.
- The optical assembly is light and flips up.
- Optics: mineral, achromatic, anti-reflective.
- Adjustment of
- height.
- pupillary distance, eye by eye.
- eye-to-objective distance (vertex).
- Lets you work hands-free with a long working distance.
- The loupes can be sterilised (follow the procedure).
- The BG12 high-intensity light fits this product (option).
- height.
- pupillary distance, eye by eye.
- eye-to-objective distance (vertex).
Galiléi Design Édition Protect |
|||||||
Magnification / distance table |
|||||||
Magnification |
|||||||
2.5 x |
3.0 x |
3.5 x |
|||||
Code |
Field of view |
Code |
Field of view |
Code |
Field of view |
||
Working distance |
340 mm |
BG05.250S |
80 mm |
BG05.300S |
70 mm |
BG05.350S |
60 mm |
420 mm |
BG05.250M |
100 mm |
BG05.300M |
84 mm |
BG05.350M |
72 mm |
|
460 mm |
BG05.250L |
110 mm |
BG05.300L |
92 mm |
BG05.350L |
78 mm |
|
500 mm |
BG05.250XL |
120 mm |
BG05.300XL |
100 mm |
BG05.350XL |
84 mm |
|
Prescription protective (water) lens solution.
Our Optometry department can produce fully prescription lenses for this frame.
The advantages.
- A simpler job for the optician.
- Repeatability for a consistent quality offer.
- Weight saving.
- Better hygiene protection.
The lenses are
- delivered edged to fit the frame directly.
- With the customer's prescription.
- With an optional tint to be specified.
- With an optional coating to be specified.
Limitations and benefits.
- Progressive lenses
- do not give good results.
- the progression ends up inside the Galilean.
- Occupational or long-corridor progressive lenses.
- The result is satisfactory.
- the progression inside the Galilean is acceptable.
- This solution gives the practitioner their close surroundings around the Galilean.
- Single-vision lenses.
- The result is perfect.
- the Galilean is perfectly corrected.
- This solution gives the practitioner only near vision around the Galilean.
- With an optional tint to be specified.
- Tint 527 or 550 to filter blue light.
- With an optional coating to be specified.
- Hydrophobic coating.
- do not give good results.
- the progression ends up inside the Galilean.
- The result is satisfactory.
- the progression inside the Galilean is acceptable.
- This solution gives the practitioner their close surroundings around the Galilean.
- The result is perfect.
- the Galilean is perfectly corrected.
- This solution gives the practitioner only near vision around the Galilean.
- Tint 527 or 550 to filter blue light.
- Hydrophobic coating.
Characteristics:
| Reference | BG05.250L |
| Commercial magnification | 2.5 x |
| Net weight | 95 g |
| Working distance | 460 mm |
| Field of vision | 110 mm |
| Lighting |
| Public price (Tax incl.) | 975.00 € |
